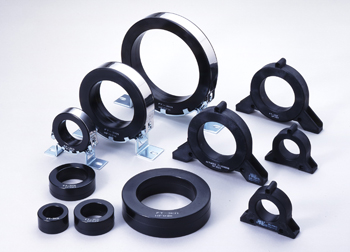

FT-8K50D F series
FT-8K50D F series is cores for common mode choke with high impedance at MHz band and high DC superposed characteristics.
These cores have high saturation-field that suppress larger common mode current noise effectively.
FT-8K50D F series
| Product code | P/N | Dimension (mm) | Ae | Le | Weight | AL Value (μH/N2) | |||
|---|---|---|---|---|---|---|---|---|---|
| OD MAX. |
ID MIN. |
HT MAX. |
(mm2) TYP. |
(mm) TYP. |
(g) TYP. |
10 kHz TYP. |
100 kHz TYP. |
||
| F1AH1121 | FT-8K50D F4535G | 49.5 | 30.5 | 25.7 | 75.0 | 125.7 | 89 | 3.7 | 3.7 |
| F1AH1122 | FT-8K50D F6045G | 64.7 | 40.3 | 26.0 | 107.3 | 166.0 | 157 | 4.1 | 4.0 |
| F1AH1123 | FT-8K50D F7555G | 79.7 | 50.3 | 25.7 | 146.3 | 205.5 | 272 | 4.5 | 4.4 |
| F1AH1124 | FT-8K50D F10080G | 104.7 | 75.3 | 25.7 | 139.5 | 286.2 | 336 | 3.1 | 3.0 |
| F1AH1125 | FT-8K50D F140100P | 145 | 95.3 | 36.0 | 430.9 | 382.8 | 1350 | 7.1 | 7.0 |
| F1AH1164 | FT-8K50D F160130H | 166.9 | 123.9 | 30.5 | 292.5 | 455.5 | 1029 | 4.0 | 4.0 |
| F1AH1126 | FT-8K50D F200160P | 205 | 155 | 36.0 | 427.5 | 568.6 | 1930 | 4.7 | 4.7 |
Online purchase
- Note: Standard product sample for automotive applications and special applications is only for initial evaluation purposes.
- Inquiries for automotive applications, special applications, and customization, please contact us by the inquiry form below.
