Shield Yoke Sheet for Wireless Chargers FINEMET® MS Series
Processed laminated sheet using low-loss, high permeability nano-crystalline material FINEMET® helps reduce noise and energy loss of wireless electric power transmission and also magnetic shield yoke sheets for small electronic devices.
Product Catalog Download
Click here to download the product catalog
Contact
Soft Magnetic Materials and Components (for FINEMET® Applied Product and Ribbon)
MS-HiQ Series / FINEMET® Magnetic Shield Yoke Sheet for Wireless Charging
A magnetic sheet with a significantly improved Q value for shield yoke applications of wireless charging.
Features
- Significantly improved Q value of our conventional MS series by controlling the magnetic permeability
- Achieved high mechanical reliability with excellent flexibility and impact resistance
- Superiority in the assembling process of the wireless charging system (forming and handling such as cutting, punching, etc.)
- Achieved thinner and lighter sheet with the high saturation magnetic flux density of our FINEMET® sheet(1.23T, ref. Mn-Zn(ML29D) ferrite: 0.54T) (Using FINEMET® is 50% thinner and 35% lighter than with ML29D)
Characteristics
- *Our evaluation value by ring core
Measurement conditions: f = 85kHz, V = 0.03V

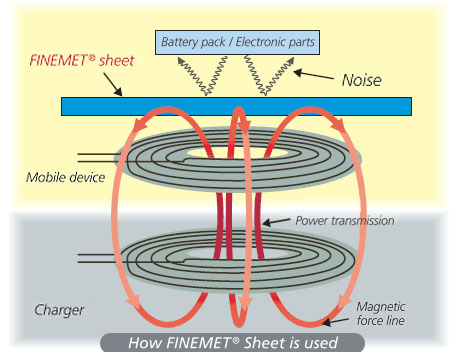

How FINEMET sheet is used
Battery pack / Electronic parts
FINEMET® sheet
Noise
Mobile device
Power transmission
Charger
Magnetic
force line
How FINEMET® Sheet is used
Click here to download the document
MS series / Magnetic shield yoke sheet for small electronic devices
Features
The MS series laminated with the nanocrystal soft magnetic material Finemet® is suitable for shield yokes of electronic devices.
- Thin: 60μm thickness
- Lightweight: 0.4g/50mm
- Low loss : 300kW/m3(100kHz 0.2T)*
- High permeability: 15,000(100kHz)*
- High saturation flux density: 1.23T(800Am)*
- *Value of FINEMET® toroidal core measured by Hitachi Metals, Ltd.
Characteristics

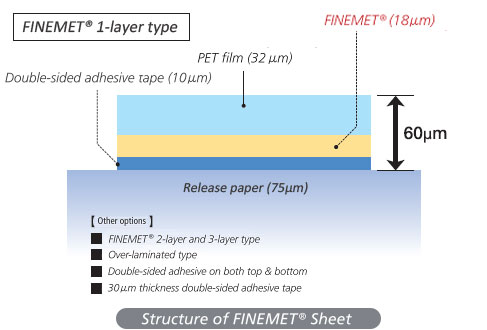

FINEMET® 1-layer type
FINEMET® (18μm)
PET film (32μm)
Double-sided adhesive tape (10μm)
Release paper (75μm)
【 Other options 】
FINEMET® 2-layer and 3-layer type
Over-laminated type
Double-sided adhesive on both top & bottom
30μm thickness double-sided adhesive tape
Structure of FINEMET® Sheet
