Magnetic domain controlled low loss Fe-based amorphous alloys MaDC-A™
Our company has succeeded in significant reduction of iron core loss by controlling the magnetic domain structure in Fe-based amorphous alloy and has made new material series "MaDC" deriving from Magnetic Domain Controlled technologies.
Product Catalog Download
Click here to download the product catalog
Contact
Soft Magnetic Materials and Components (for Amorphous Transformer)
Topics
Features
MaDC-A™ shows 25% lower iron loss compared to conventional 2605 HB1M as well as high magnetic flux density of 1.57T (at 80A/m).

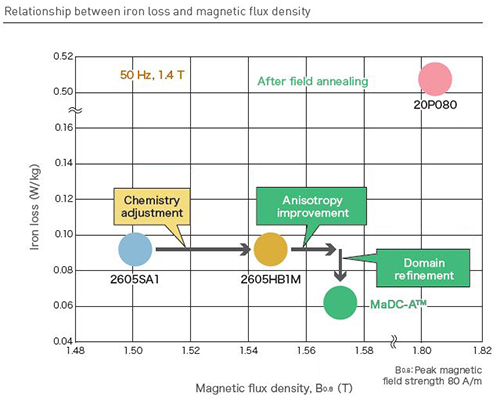

Relationship between iron loss and magnetic flux density
Chemistry
adjustment
Anisotropy
Improvement
Domain
Refinement
2605SA1
2605HB1M
MaDC-ATM
50 Hz, 1.4 T
After field annealing
20PO80
B0.8: Peak magnetic
field strength 80A/m
Magnetic flux density, B0.8(T)
Iron loss (W/kg)
Application
- Distribution transformers, Pole Mounted Transformers, Industry Transformers, Distributed Energy Resources(Solar Power, Wind Power etc.)
- Rectifier Transformer
- Smaller Industrial Isolation Transformers
- Medium Frequency Transformers
