We have developed a new type of magnetic wedge that does not contain resin, using a new technology that adheres magnetic particles to each other without using resin. This new technology has made it possible to increase the density of magnetic particles and achieve a high magnetic permeability that is approximately twice that of conventional products. In addition, our high-density magnetic wedges are about 1.5 times stronger than conventional ones, and because they are resin-less, they have excellent heat resistance that does not decrease even at high temperatures. In addition, since our magnetic wedge has higher electrical resistance and higher thermal conductivity than conventional materials, it can be expected to be effective in reducing eddy current loss generated in the magnetic wedge itself and improving motor cooling efficiency.

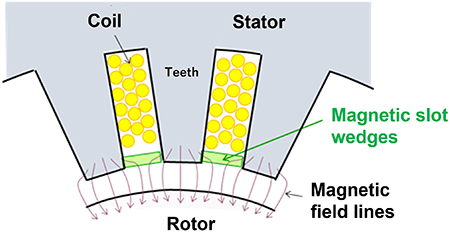

Application example

Coil

Stator

Teeth

Magnetic slot
wedges

Magnetic
field lines

Rotor

Magnetic characteristics

Higher(about twice) permeability than conventional materials

Strength temperature dependence

Excellent thermal stability
