FT-3KM S series

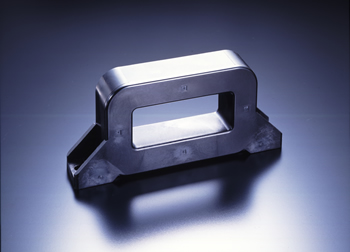

FT-3KM S series is rectangular shaped cores for common mode choke.
Low profile figures allow utilizing space effectively in a switchboard.
FT-3KM S10085HB is 50% lighter compare to Mn-Zn ferrite core with same properties.

FT-3KM S series

Product code	P/N	A_e	L_e	Weight	AL Value (μH/N²)
Product code	P/N	(mm²) TYP.	(mm) TYP.	(g) TYP.	10 kHz TYP.	100 kHz TYP.
F1AH0545	FT-3KM S10085HB	112.5	290.1	410	36.6	9.3
F1AH0572	FT-3KM S11080HB	271.9	303.8	765	84.4	21.4

Online purchase

Mouser Electronics

Click here to purchase a sample (Purchas products from dealer websites)

Note: Standard product sample for automotive applications and special applications is only for initial evaluation purposes.
Inquiries for automotive applications, special applications, and customization, please contact us by the inquiry form below.
